MARINE CORPS RECRUIT DEPOT, CALIFORNIA
Contract Value: $2,697,401.00
Category: Dry Utility

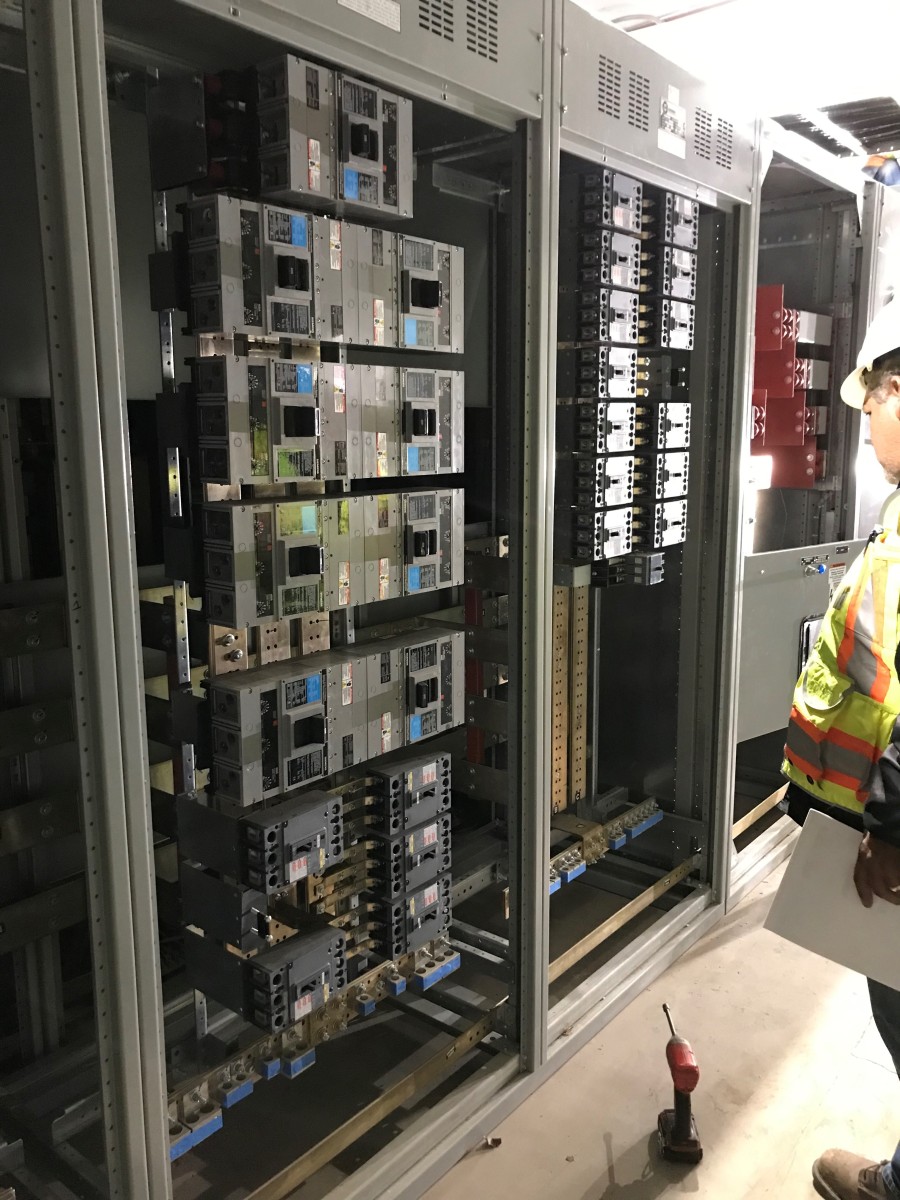

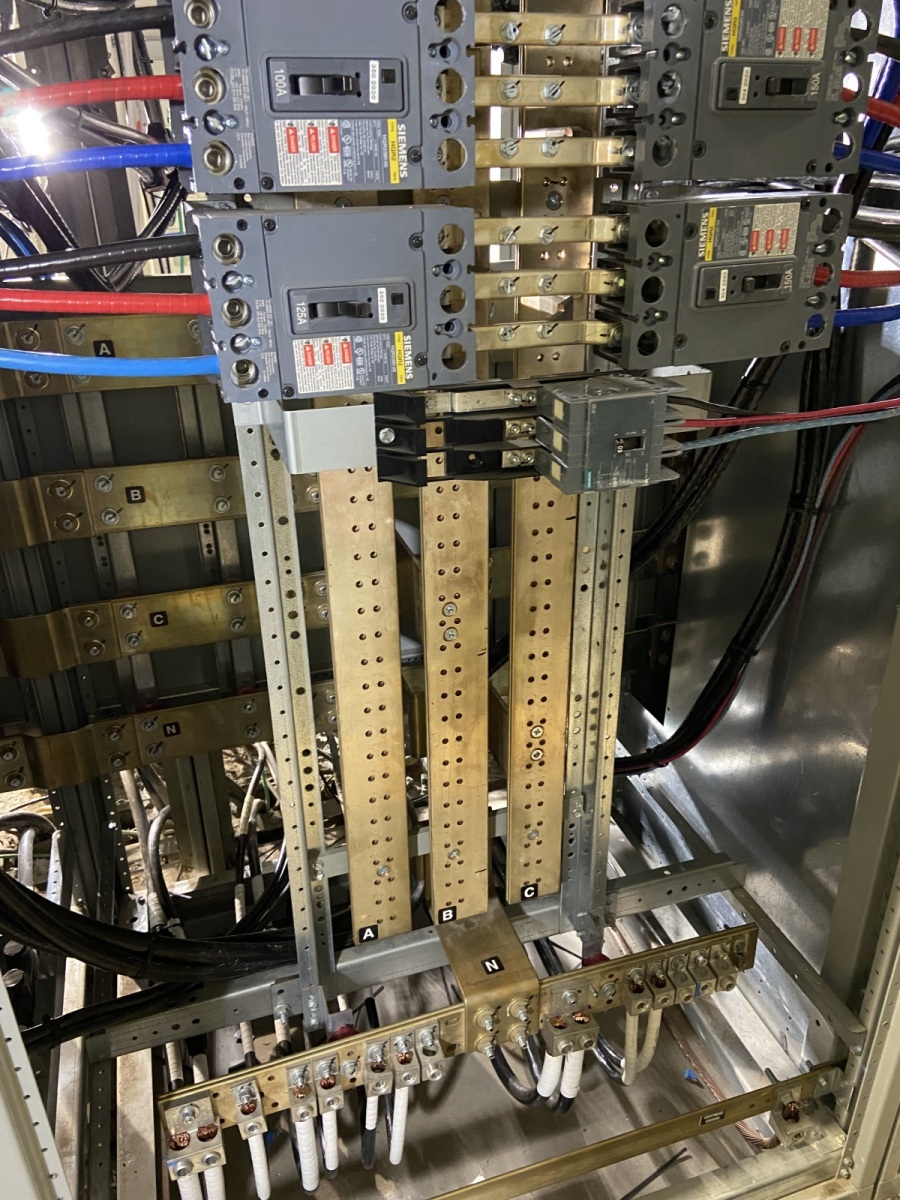

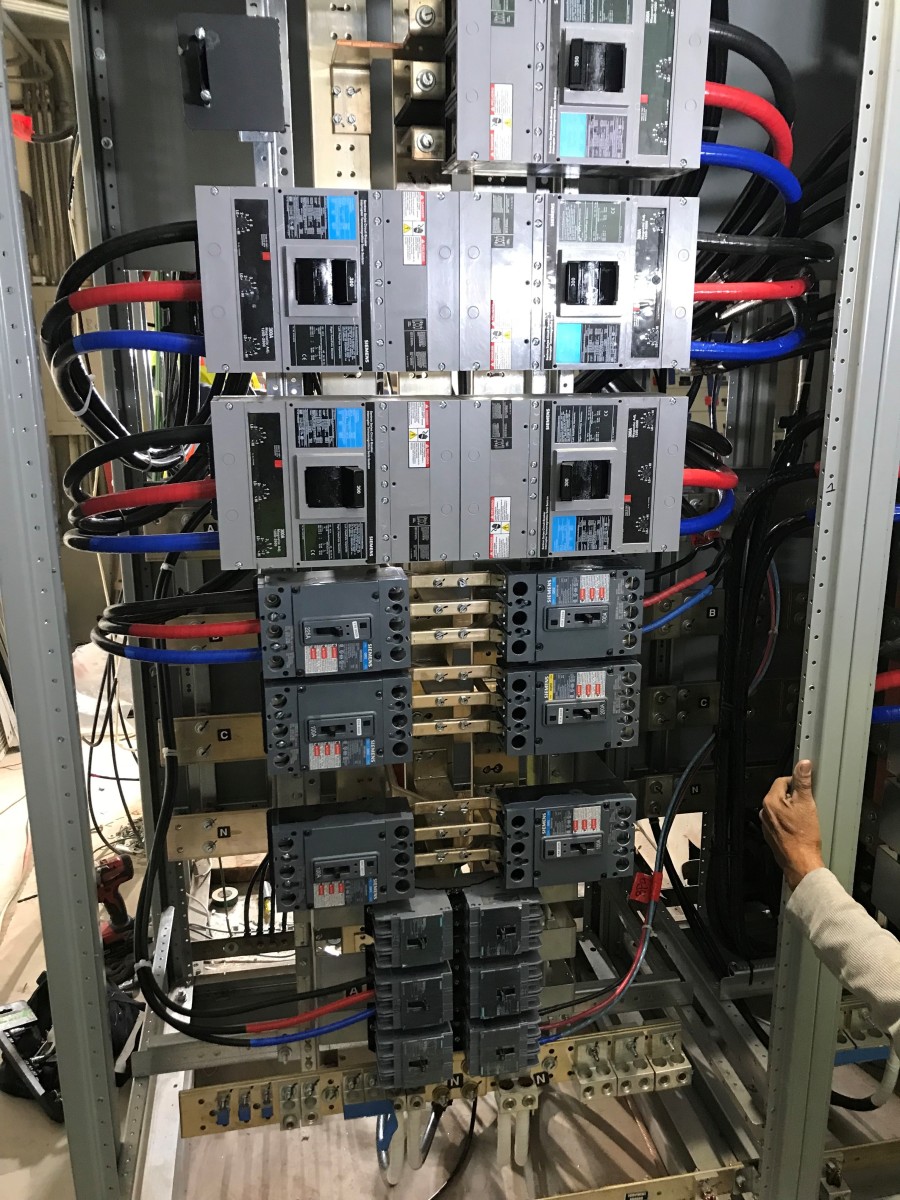

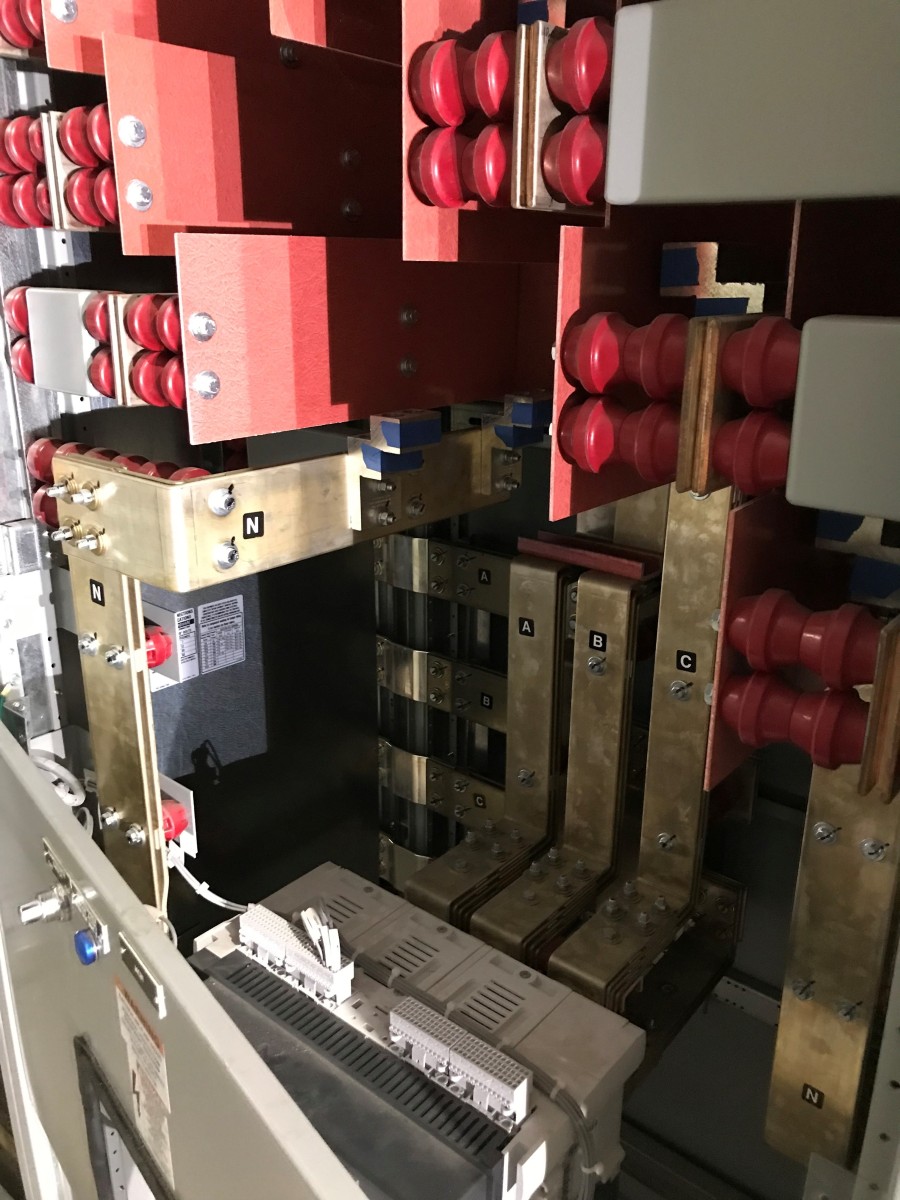

- Project managed the design and build of the replacement of substation at Bldg 569 by removing the existing 12kV medium voltage secondary unit substation (TH-12-2A) at Bldg 569 electrical room. The existing secondary unit substation consists of 750 kVA transformer and switchboard with main circuit breaker and metering. New secondary unit substation at Bldg 569 inside the electrical room with same electrical distribution configuration consisting of a rated, 750kVA transformer with fused overcurrent protection device and 2500A switchboard was installed and interconnected with emergency generator power and photovoltaic system.

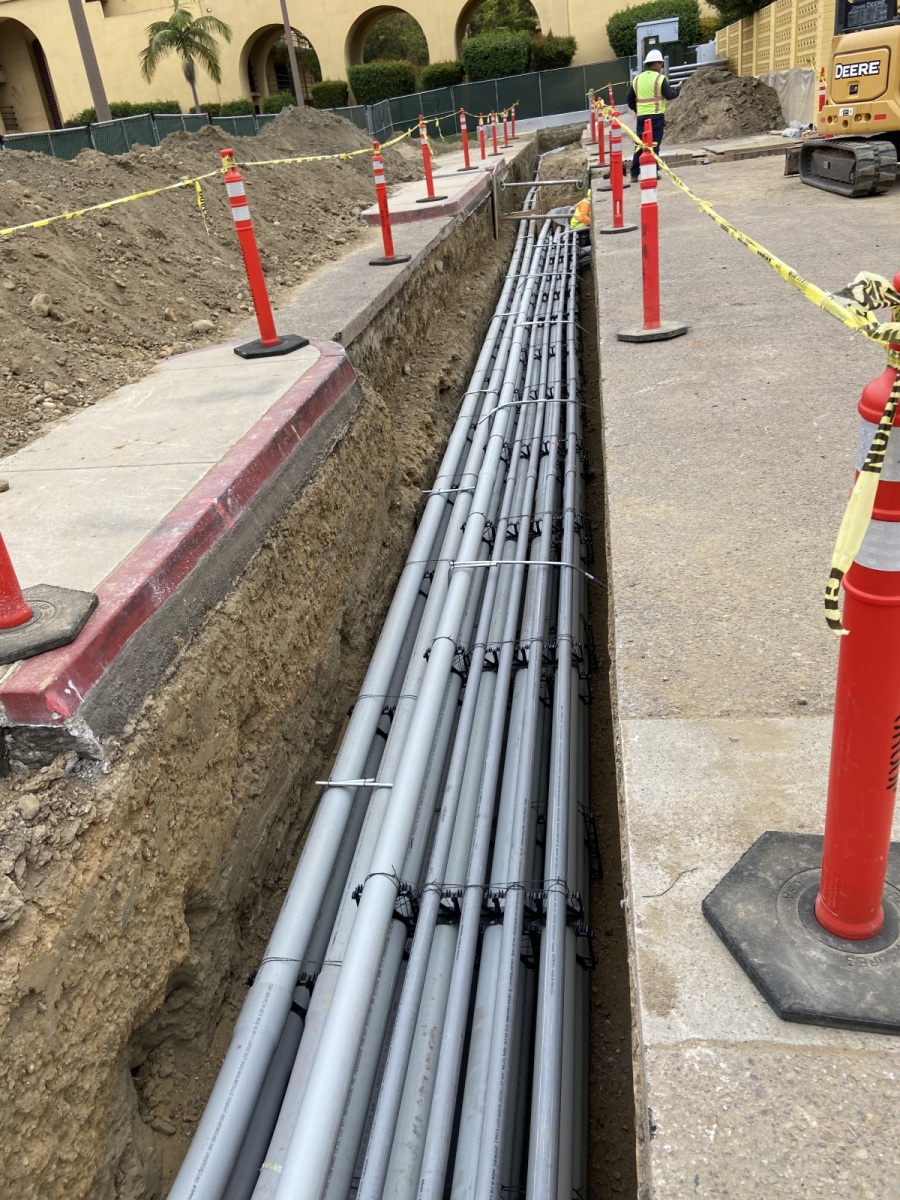

- Project managed design and build of the replacement of substation at Bldg 620 by replacing and relocating existing 12 kV medium voltage electrical equipment at Bldg 619 and Bldg 620 pad location 300 feet East in the parking lot to a new centralized electrical equipment pad. The scope included a new fence with double gates and area lighting for concrete electrical equipment pad with spill containment, the removal of the existing 5-way oil sectionalizing switch, 3-way oil switch, 750kVA transformer with main circuit breaker on load-side of transformer, and Main Switchboard. New 6-way sectionalizing switch, electrical equipment pad, 12kV medium voltage cable, 600V secondary cable, manholes, pull boxes, encased concrete duct bank, 750kVA transformer with main circuit breaker on secondary side, wireless smart meters, short block and/or test devices, instrument, accessories and Main Switchboard were installed.
Relevant Project Experience:
- Design Build, Medium Voltage Electrical Distribution, Underground Electrical Distribution, Switchgear Installation, Concrete and Rebar Installation, and Mess Hall Logistics and Planning.
